Tires and air springs, Rubber Coated Bead Wire Technology
Bead wire for tires

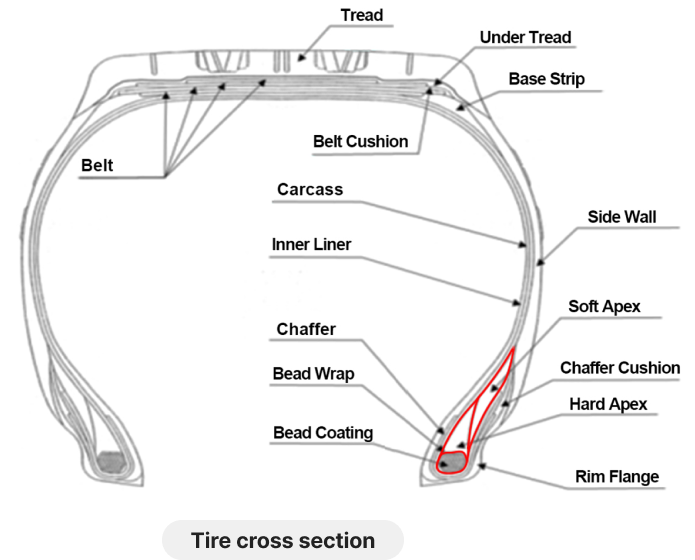

It is a square-shaped wire bundle made of steel wire covered with rubber and is wrapped around the end of the carcass due to the structure of the tire. When filled with air, it secures the tire to the wheel and withstands the load the tire receives.
Core technology
Our core technology is to coat steel wire with rubber to shape it into a circle and maintain its shape for a long period of time. We manufacture and supply bead wire for tires and air springs.
Bead wire for tires
Classification and bead wire specifications according to vehicle type
| Image | Division | Explanation | Applicable inches | Circumference (mm) | Line | Number |
|---|---|---|---|---|---|---|
 |
Motorcycle and Scooter | Bead wire for motorcycles and small scooters | 5~26” | 406~2,100 | 2~5 | 3~5 |
 |
Agriculture | Bead wire applied to tires of tractors, garden tractors, cultivators, etc. | 7~38” | 566~3078 | 3~11 | 3~12 |
 |
Industrial equipment | Bead wire applied to tires of forklifts, transport vehicles, small trailers, etc. | 8~16” | 662~1306 | 5~8 | 6~9 |
 |
Light Truck and Truck&Bus | Bead wire applied to tires of light trucks, trucks, buses, etc. | 13~25” | 1061~2035 | 4~13 | 5~15 |
 |
Off the road | Bead wire applied to tires of wheel loaders, excavators, graders, etc. | 16~35” | 1323~2860 | 7~13 | 6~20 |
 |
Passenger Car | Bead wire for temporary tires | 13~17” | 1050~1391 | 4~5 | 3~5 |
Bead wire for railway vehicles
Bead wire used in air springs in railroad cars, trucks and buses
The air spring system of railway vehicles uses products with low natural frequencies to provide excellent riding comfort. This system effectively absorbs vibration and shock, increasing stability while driving and allowing passengers to move more comfortably.
In addition, the horizontal adjustment function allows the vehicle body to move smoothly up and down, so it is designed to allow passengers to use it safely and conveniently without any inconvenience when boarding or disembarking.
